09185406324 | Harting

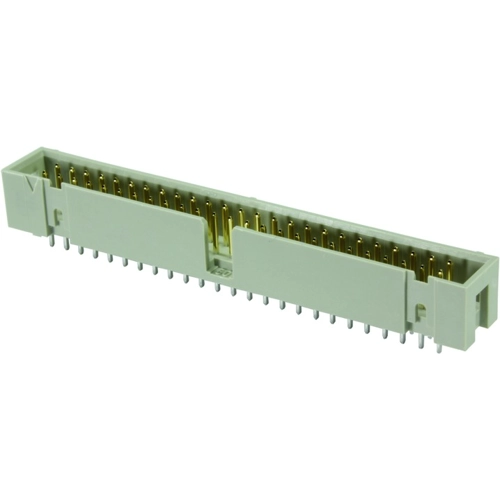

Pin header, 40 pole, pitch 2.54 mm, straight, gray, 09185406324
Unit Price (€ / pc.)
3.2844 € *
Available: 1,055 pcs.
Total Price:
3.28 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2844 €
10 pcs.
3.0345 €
50 pcs.
2.8203 €
100 pcs.
2.6299 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 09185406324, HARTING
Male connector, Wave soldering termination, Rated current: 1 A, Contacts: 40, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side Performance, level: 2, acc. to IEC 60603-13 , Thermoplastic resin (PBT), Grey
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 40 pole | |
| Grid | 2.54 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 500 V | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Electrical equipment take-back |  |
| SVHC free | Yes |
| RoHS conform | Yes |
