09185606324 | Harting

Pin header, 60 pole, pitch 2.54 mm, straight, gray, 09185606324

Order No.: 53F4245
EAN: 4099889999082
MPN:
09185606324
09 18 560 6324
Series: SEK

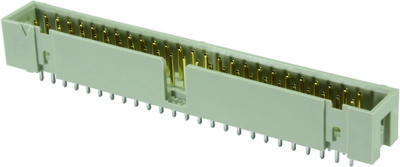

09185606324 Harting PCB Connection Systems Image 1
09185606324 Harting PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.4391 € *
Next delivery: 40 pcs. on 2025-08-21
Total Price:
3.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.4391 €

Low profile pin headers, straight, type 0918.

Dimension E: (number of poles/2 - 1) x 2.54 mm. Dimension B: E + 7.7 mm.

Technical attributes (type, number of poles, dimension A): 5606324, 60-pole, A 84.0 mm

Technical specifications
Filter Property Value
Rated voltage 500 V
Orientation straight
Rated current 1 A
Colour gray
Pin number 60 pole
Connection PCB connection
Contact type pin
Connection plating tin-plated
contact surface gold-plated
Version pin header
Additional parts equipped
Grid 2.54 mm
Number of rows 2
Logistics
Property Value
Customs tariff number 85366990
Country of origin CH
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
