09185166324 | Harting

Pin header, 16 pole, pitch 2.54 mm, straight, gray, 09185166324

Order No.: 53F4215
EAN: 4099889999020
MPN:
09185166324
09 18 516 6324
Series: SEK

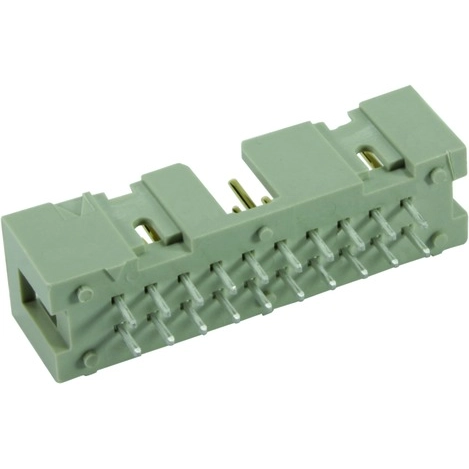

09185166324 Harting PCB Connection Systems Image 1
09185166324 Harting PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.7255 € *
Available: 103 pcs.
Next delivery: 1,000 pcs. on 2025-08-25
Total Price:
1.73 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7255 €
10 pcs.
1.6065 €
50 pcs.
1.4756 €
100 pcs.
1.3447 €
*incl. VAT plus shipping costs
Subject to prior sale

Low profile pin headers, straight, type 0918.

Dimension E: (number of poles/2 - 1) x 2.54 mm. Dimension B: E + 7.7 mm.

Technical attributes (type, number of poles, dimension A): 5166324, 16-pole, A 27.9 mm

Technical specifications
Filter Property Value
Rated voltage 500 V
Rated current 1 A
Grid 2.54 mm
Connection plating tin-plated
Number of rows 2
Orientation straight
contact surface gold-plated
Version pin header
Colour gray
Connection PCB connection
Pin number 16 pole
Additional parts equipped
Contact type pin
Logistics
Property Value
Country of origin CH
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
