09185066323 | Harting

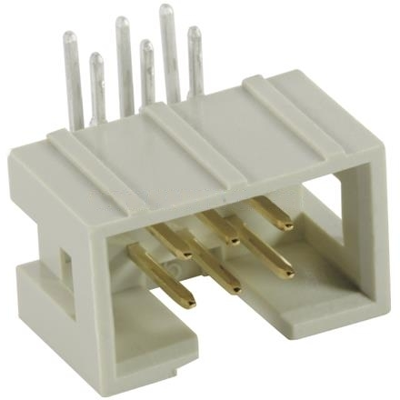

Pin header, 6 pole, pitch 2.54 mm, angled, gray, 09185066323
Unit Price (€ / pc.)
1.1424 € *
Available: 155 pcs.
Next delivery: 1,200 pcs. on 2026-07-24
Total Price:
1.14 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1424 €
10 pcs.
1.0472 €
50 pcs.
1.0115 €
100 pcs.
0.9401 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 09185066323, HARTING
Male connector, Wave soldering termination, Rated current: 1 A, Contacts: 6, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-13, Thermoplastic resin (PBT), Grey.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 6 pole | |
| Grid | 2.54 mm | |
| Connection | PCB connection | |
| Orientation | angled | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 500 V | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
