09580221021 | Harting

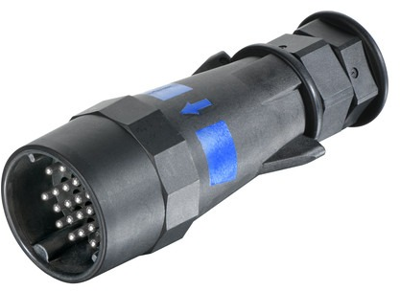

Plug, 22 pole, crimp connection, straight, 09580221021
Unit Price (€ / pc.)
88.0362 € *
Standard delivery time from the manufacturer is: On Request
Connector set, 09580221021, Harting
Connector set, with cable gland, male, crimp termination, Polyamide (PA), black, Contacts: 22, Copper alloy Silver plated, Conductor cross-section: 0.75-1 mm², Rated current: 10 A, Polyamide (PA), Fibre-glass reinforced, Degree of protection: IP69 / IPX9K acc. to ISO 20653 mated condition, IP67 unmated condition and cover closed.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.75-1.0 mm² | |
| contact surface | silver-plated | |
| Shell Material | PA | |
| Version | plug | |
| Orientation | straight | |
| Pin number | 22 pole | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
