09452451561 | Harting
HARTING 09452451561
Order No.: 44F3993
EAN: 4099889825510
MPN:
09452451561
09 45 245 1561
Unit Price (€ / pc.)
21.2296 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

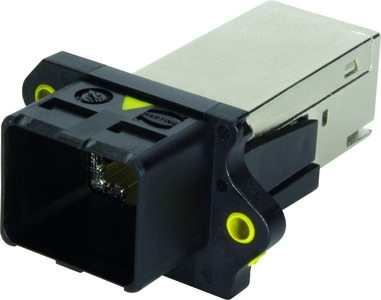

Panel feed-through set, contacts: 8
Panel feed-through set, contacts: 8.
The technical features of 09452451561 from Harting at glance
- min. Ambient temperature - 40 °C
- min. Operating temperature - 40 °C
- max. Operating temperature 70 °C
- max. Ambient temperature 70 °C
- Flammability class of the insulating material (based on UL 94) V0
- Description PushPull V4 PFT, 10G, Cat.6, 8-pin
- Number of plug contacts 8
- Locking type Push Pull
- Protection class (IP, mounted) IP67 - IP65
- Angle contact / conductor connection 180° (horizontal)
- Housing material Plastic
- Interlock available Yes
- Contact design Panel feed-through set
- Product type description PushPull V4 PFT, 10G, Cat.6, 8-pin
Technical specifications
| Design | straight | |
| Category | Cat 6 | |
| Connector (exit) | RJ45 socket | |
| Connector | RJ45 socket |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
