09352250331 | Harting
HARTING 09352250331
Order No.: 44F3354
EAN: 4099889825206
MPN:
09352250331
09 35 225 0331
Unit Price (€ / pc.)
39.0796 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

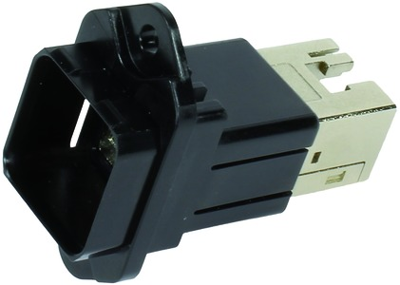

Panel feed-through set, rated current: 1.75 A, contacts: 8
Panel feed-through set, rated current: 1.75 A, contacts: 8.
The technical features of 09352250331 from Harting at glance
- Rated current 1.75 A
- Description Han PushPull PFT plastic Bulkhead Cat.6
- Rated voltage 50 V
- Flammability class of the insulating material (based on UL 94) V0
- Number of plug contacts 8
- Locking type Push Pull
- min. Operating temperature - 40 °C
- min. Ambient temperature - 40 °C
- max. Operating temperature 70 °C
- max. Ambient temperature 70 °C
- Product type description Han PushPull PFT plastic Bulkhead Cat.6
- Contact design Panel feed-through set
- Angle contact / conductor connection 180° (horizontal)
- Housing material Plastic
- Interlock available Yes
- Protection class (IP, mounted) IP67 - IP65
Technical specifications
| Design | straight | |
| Category | Cat 6 | |
| Connector (exit) | RJ45 socket | |
| Connector | RJ45 socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
