09200160301 | Harting

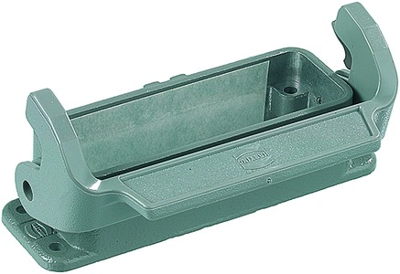

Name: Bulkhead housing, size A16, die-cast aluminum, Single locking latch, IP65, 09200160301
Brand: Harting
SKU: 42F960
Price: 17.50 EUR
Availability: InStock

Bulkhead housing, size A16, die-cast aluminum, Single locking latch, IP65, 09200160301

Images may differ

Order No.: 42F960

Manufacturer: Harting

Manufacturer SKU:
09200160301
09 20 016 0301

Manufacturer series: Han A

EAN: 4099889746617

Order reference: Supplied without standard and special cable glands and mounting sets for flat cable outputs, please order these separately

about the green icons

Total price

( 17.5049 € * / pcs.)

17.50 €

Available: 2 pcs.

Quantity

Price per unit*

1 pcs.

17.5049 €

10 pcs.

15.7556 €

100 pcs.

14.1848 €

*incl. VAT plus shipping costs

Show 2 variants

Description

Product by Harting at Bürklin Elektronik

Corresponding connector housings, surface-mount size 16 A, type 0920016../1920016.

For contact inserts Han A 16-pole, Staf 20-pole, Han D 25-pole. With bracket. Type 0321 also features a plastic cap. surface-mount housing with cable entry through the mounting hole and panel-mount housings with one or two cable exits each.

Technical attributes (type, bulkhead mount or base panel design, cable exit): 0301, base panel, low

Technical specifications

	Version	bulkhead housing
	Shell size	A16
	Shell Material	die-cast aluminum
	Degree of protection (IP)	IP65
	Type of locking	Single locking latch

Show similar products (0)

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate

Download

Technical Data Sheet - EN

Technical Data Sheet

Declaration of Conformity - EN

Declaration of Conformity

Technical Data Sheet - DE

Technical Data Sheet

Declaration of Conformity - DE

Declaration of Conformity
