Harting

17041542204 | Harting

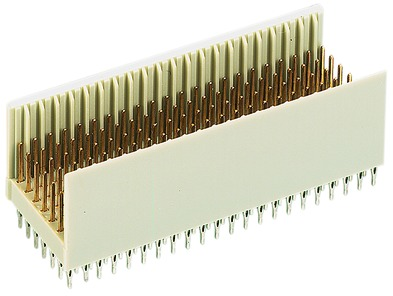

Male connector, 154 pole, pitch 2 mm, straight, 17041542204

Order No.:  44F8967
MPN:
17041542204
17 04 154 2204
EAN: 4099891036638
Harting
default L
default S
Images may differ
Unit Price (€ / pc.)
7.8659 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Add to Cart
Total Price:
7.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.8659 €
Description

Male connector, 17041542204, HARTING

Male connector, thermoplastic molding material, glass fiber reinforced, beige, motherboard to daughtercard, press-fit connection, rated current: 1 A, contacts: 154, straight, copper alloy, Au over Pd/Ni over Ni, plug-in side, nickel-plated, connection side, requirement level: 2.

The technical characteristics of 17041542204 from Harting at glance

  • Grid dimension of the contact 2 mm
  • Grid dimension of the connections 2 mm
  • Insulator material Thermoplast
  • Contact coating material Plug-in side - palladium - nickel - connection side
  • Packing type Tube
  • Contact design masculine (male)
  • Product type description har-bus HM Mel. Type B22, AFS 2, Tube
  • min. Operating temperature -55 °C
  • max. Operating temperature 125 °C
  • Angle printed circuit board/contact 0°/180° (horizontal)
  • Suitable for PCB thickness 1.4 mm
  • Execution of the electrical connection Print connection
  • Number of plug contacts 154
  • Connection type PCB to PCB
  • Number of rows of plug contacts 7
  • Rated current 1 A
  • Flammability class of the insulating material (based on UL 94) V0
  • Description har-bus HM Mel. Type B22, AFS 2, Tube
Technical specifications
Connection press-in connection
Design B22
Contact type pin
contact surface gold-plated
Rated current 1 A
Orientation straight
Pin number 154 pole
Grid 2 mm
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Search results: 1 item in 11 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Design
Contact type
contact surface
Grid
Pin number
Connection
Orientation
Rated current
Male connector, 154 pole, pitch 2 mm, straight, 17041542204
Order No.:
 44F8967
Manufacturer:
 Harting
Manufacturer SKU:
 17041542204
Total Price: 7.87 € *
1 pcs.
7.8659 €
Available: 0 pcs.
Leadtime: 5 Weeks **
B22
pin
gold-plated
2 mm
154 pole
press-in connection
straight
1 A
Male connector, 154 pole, pitch 2 mm, straight, 17041542002
Order No.:
 44F8962
Manufacturer:
 Harting
Manufacturer SKU:
 17041542002
Total Price: 15.54 € *
1 pcs.
15.5414 €
Available: 0 pcs.
Leadtime: 3 Weeks **
B22
pin
gold-plated
2 mm
154 pole
press-in connection
straight
1 A
Male connector, 154 pole, pitch 2 mm, straight, 17041541203
Order No.:
 44F8960
Manufacturer:
 Harting
Manufacturer SKU:
 17041541203
Total Price: 8.62 € *
1 pcs.
8.6156 €
Available: 0 pcs.
Leadtime: 3 Weeks **
B22
pin
gold-plated
2 mm
154 pole
press-in connection
straight
1 A
Male connector, 154 pole, pitch 2 mm, straight, 17041542203
Order No.:
 44F8966
Manufacturer:
 Harting
Manufacturer SKU:
 17041542203
Total Price: 6.72 € *
1 pcs.
6.7235 €
Available: 0 pcs.
Leadtime: 3 Weeks **
B22
pin
gold-plated
2 mm
154 pole
press-in connection
straight
1 A
Male connector, 154 pole, pitch 2 mm, straight, 17041541010
Order No.:
 44F8958
Manufacturer:
 Harting
Manufacturer SKU:
 17041541010
Total Price: 22.18 € *
1 pcs.
22.1816 €
Available: 0 pcs.
Leadtime: 5 Weeks **
B22
pin
gold-plated
2 mm
154 pole
press-in connection
straight
1 A
Male connector, 154 pole, pitch 2 mm, straight, 17041542010
Order No.:
 44F8964
Manufacturer:
 Harting
Manufacturer SKU:
 17041542010
Total Price: 16.21 € *
1 pcs.
16.2078 €
Available: 0 pcs.
Leadtime: 5 Weeks **
B22
pin
gold-plated
2 mm
154 pole
press-in connection
straight
1 A
Male connector, 154 pole, pitch 2 mm, straight, 17041541201
Order No.:
 44F8959
Manufacturer:
 Harting
Manufacturer SKU:
 17041541201
Total Price: 8.65 € *
1 pcs.
8.6513 €
Available: 0 pcs.
Leadtime: 5 Weeks **
B22
pin
gold-plated
2 mm
154 pole
press-in connection
straight
1 A
Male connector, 154 pole, pitch 2 mm, straight, 17041542601
Order No.:
 44F8968
Manufacturer:
 Harting
Manufacturer SKU:
 17041542601
Total Price: 15.03 € *
1 pcs.
15.0297 €
Available: 0 pcs.
Leadtime: 5 Weeks **
B22
pin
gold-plated
2 mm
154 pole
press-in connection
straight
1 A
Male connector, 154 pole, pitch 2 mm, straight, 17041542201
Order No.:
 44F8965
Manufacturer:
 Harting
Manufacturer SKU:
 17041542201
Total Price: 6.59 € *
1 pcs.
6.5926 €
Available: 0 pcs.
Leadtime: 3 Weeks **
B22
pin
gold-plated
2 mm
154 pole
press-in connection
straight
1 A
Male connector, 154 pole, pitch 2 mm, straight, 17041541002
Order No.:
 44F8956
Manufacturer:
 Harting
Manufacturer SKU:
 17041541002
Total Price: 20.74 € *
1 pcs.
20.7417 €
Available: 0 pcs.
Leadtime: 5 Weeks **
B22
pin
gold-plated
2 mm
154 pole
press-in connection
straight
1 A
Male connector, 154 pole, pitch 2 mm, straight, 17041541601
Order No.:
 44F8961
Manufacturer:
 Harting
Manufacturer SKU:
 17041541601
Total Price: 21.60 € *
1 pcs.
21.5985 €
Available: 0 pcs.
Leadtime: 5 Weeks **
B22
pin
gold-plated
2 mm
154 pole
press-in connection
straight
1 A
