Harting

17021752201 | Harting

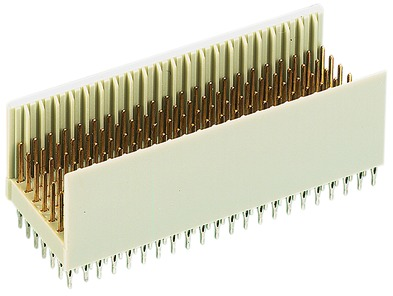

Male connector, 175 pole, pitch 2 mm, straight, 17021752201

Order No.:  44F8914
MPN:
17021752201
17 02 175 2201
EAN: 4099891036386
Harting
default L
default S
Images may differ
Unit Price (€ / pc.)
6.783 € *
Available: 321 pcs.
Leadtime: 2 Weeks **
Total Price:
6.78 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.783 €
Description

Male connector, 17021752201, HARTING

Male connector, thermoplastic molding material, glass fiber reinforced, beige, motherboard to daughtercard, press-fit connection, rated current: 1 A, contacts: 175, straight, copper alloy, Au over Pd/Ni over Ni, plug-in side, nickel-plated, connection side, requirement level: 2.

The technical characteristics of 17021752201 from Harting at glance

  • Grid dimension of the contact 2 mm
  • Grid dimension of the connections 2 mm
  • Insulator material Thermoplast
  • Contact coating material Plug-in side - palladium - nickel - connection side
  • Packing type Tube
  • Contact design masculine (male)
  • Product type description har-bus HM Mel. Type B 25, AFS 2, Tube
  • min. Operating temperature -55 °C
  • Angle printed circuit board/contact 0°/180° (horizontal)
  • max. Operating temperature 125 °C
  • Suitable for PCB thickness 1.4 mm
  • Execution of the electrical connection Print connection
  • Number of plug contacts 175
  • Connection type PCB to PCB
  • Number of rows of plug contacts 7
  • Rated current 1 A
  • Flammability class of the insulating material (based on UL 94) V0
  • Description har-bus HM Mel. Type B 25, AFS 2, Tube
Technical specifications
Connection press-in connection
Design B25
Contact type pin
contact surface gold-plated
Rated current 1 A
Orientation straight
Pin number 175 pole
Grid 2 mm
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Search results: 1 item in 3 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Design
Contact type
contact surface
Grid
Pin number
Connection
Orientation
Rated current
Male connector, 175 pole, pitch 2 mm, straight, 17021752201
Order No.:
 44F8914
Manufacturer:
 Harting
Manufacturer SKU:
 17021752201
Total Price: 6.78 € *
1 pcs.
6.783 €
Available: 321 pcs.
Leadtime: 2 Weeks **
B25
pin
gold-plated
2 mm
175 pole
press-in connection
straight
1 A
Male connector, 175 pole, pitch 2 mm, straight, 17021752006
Order No.:
 44F8912
Manufacturer:
 Harting
Manufacturer SKU:
 17021752006
Total Price: 15.82 € *
1 pcs.
15.8151 €
Available: 0 pcs.
Leadtime: 5 Weeks **
B25
pin
gold-plated
2 mm
175 pole
press-in connection
straight
1 A
Male connector, 175 pole, pitch 2 mm, straight, 17021751201
Order No.:
 44F8911
Manufacturer:
 Harting
Manufacturer SKU:
 17021751201
Total Price: 9.83 € *
1 pcs.
9.8294 €
Available: 0 pcs.
Leadtime: 5 Weeks **
B25
pin
gold-plated
2 mm
175 pole
press-in connection
straight
1 A
