09791966903 | Harting

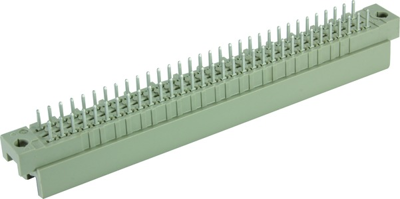

Male connector, type RL, 96 pole, a-b-c, pitch 2.54 mm, solder pin, straight, gold-plated, 09791966903
Order No.: 44F8314
EAN: 4099891018658
MPN:
09791966903
09 79 196 6903
Unit Price (€ / pc.)
4.641 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Male connector, 09791966903, Harting
Male connector, Wave soldering termination, Rated current: 2 A, Contacts: 96, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 2 | |
| Connection | solder pin | |
| Design | RL | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Contact row assignment | a-b-c | |
| Rated current | 2 A | |
| Orientation | straight | |
| Pin number | 96 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
