09732326801 | Harting

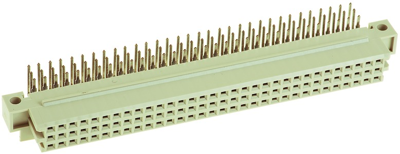

Female connector, type R, 32 pole, a-b-c, pitch 2.54 mm, solder pin, angled, gold-plated, 09732326801
Order No.: 44F8263
EAN: 4099891018238
MPN:
09732326801
09 73 232 6801
Unit Price (€ / pc.)
2.9155 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Female connector, 09732326801, Harting
Female connector, Wave soldering termination, Rated current: 2 A, Contacts: 32, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, Side coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 2 | |
| Connection | solder pin | |
| Design | R | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Contact row assignment | a-b-c | |
| Rated current | 2 A | |
| Orientation | angled | |
| Pin number | 32 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
