09242206850 | Harting
Female connector, type 3B, 20 pole, a-b, pitch 2.54 mm, press-in connection, straight, gold-plated, 09242206850
Unit Price (€ / pc.)
2.3681 € *
Available: 0 pcs.
Leadtime: On Request **

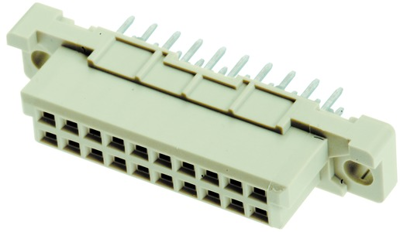

Female connector, 09242206850, Harting
Female connector, Press-in termination, Rated current: 2 A, Contacts: 20, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 2 | |
| Connection | press-in connection | |
| Design | 3B | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Contact row assignment | a-b | |
| Rated current | 2 A | |
| Orientation | straight | |
| Pin number | 20 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
