09062312881222 | Harting

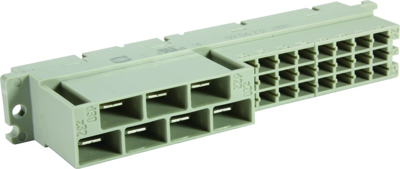

Female connector, type M/H, 24 pole, z-d, pitch 5.08 mm, crimp connection, straight, silver-plated, 09062312881222
Order No.: 45F0606
EAN: 4099891019976
MPN:
09062312881222
09 06 231 2881 222
Unit Price (€ / pc.)
7.1638 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Female connector, 09062312881222, Harting
Female connector, Crimp termination, Faston termination, Rated current: 6, 15, Contacts: 31, Copper alloy, Silver plated Mating side, power contacts, Silver plated Termination side, power contacts, Coding: Hole coding, Shroud coding, Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7035 (light grey)
Technical specifications
| Connection | crimp connection | |
| Design | M/H | |
| Contact type | socket | |
| contact surface | silver-plated | |
| Contact row assignment | z-d | |
| Rated current | 15 A | |
| Orientation | straight | |
| Pin number | 24 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
