09062152871222 | Harting

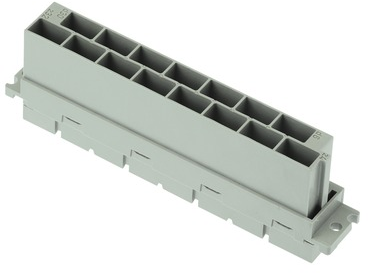

Female connector, type H15, 15 pole, z-d, pitch 10.16 mm, faston plug, straight, silver-plated, 09062152871222
Order No.: 45F0601
EAN: 4099891019952
MPN:
09062152871222
09 06 215 2871 222
Unit Price (€ / pc.)
8.3181 € *
Available: 98 pcs.
Leadtime: 6 Weeks **
Female connector, 09062152871222, Harting
Female connector, Faston termination, Rated current: 15 A, Contacts: 15, Straight, Copper alloy, Silver plated Mating side, Performance level: 1, acc. to IEC 60603-2, Coding: Shroud coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7035 (light grey)
Technical specifications
| Performance level | 1 | |
| Connection | faston plug | |
| Design | H15 | |
| Contact type | socket | |
| contact surface | silver-plated | |
| Contact row assignment | z-d | |
| Rated current | 15 A | |
| Orientation | straight | |
| Pin number | 15 pole | |
| Grid | 10.16 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
