09062152856 | Harting

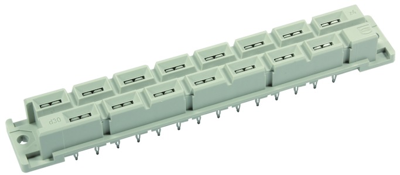

Female connector, type H15, 15 pole, z-d, pitch 2.54 mm, press-in connection, straight, silver-plated, 09062152856
Unit Price (€ / pc.)
7.9373 € *
Standard delivery time from the manufacturer is: 14 Weeks
Female connector, 09062152856, Harting
Female connector, Press-in termination, Rated current: 15 A, Contacts: 15, Straight, Copper alloy, Silver plated Termination side, Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Shroud coding, D20 coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | H15 | |
| Contact type | socket | |
| Pin number | 15 pole | |
| Contact row assignment | z-d | |
| Grid | 2.54 mm | |
| Connection | press-in connection | |
| Orientation | straight | |
| contact surface | silver-plated | |
| Rated current | 15 A | |
| Performance level | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
