09052482854 | Harting

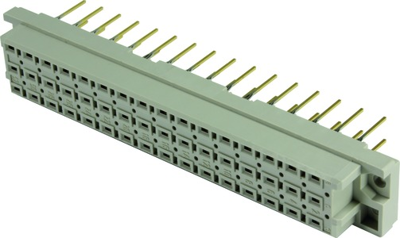

Female connector, type E, 48 pole, a-c-e, pitch 5.08 mm, press-in connection, straight, gold-plated, 09052482854
Unit Price (€ / pc.)
15.7437 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Female connector, 09052482854, Harting
Female connector, Press-in termination, Rated current: 6 A, Contacts: 48, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 1 | |
| Connection | press-in connection | |
| Design | E | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Contact row assignment | a-c-e | |
| Rated current | 6 A | |
| Orientation | straight | |
| Pin number | 48 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
