09051482931 | Harting
Male connector, type E, 48 pole, a-c-e, pitch 5.08 mm, solder pin, angled, 09051482931
Order No.: 44F650
EAN: 4099891017279
MPN:
09051482931
09 05 148 2931
Unit Price (€ / pc.)
8.5323 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

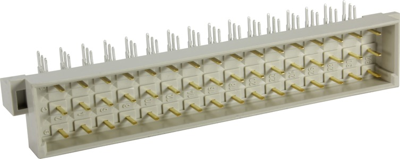

Male connector, 09051482931, Harting
Male connector, Wave soldering termination, Rated current: 6 A, Contacts: 48, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, Side coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 1 | |
| Connection | solder pin | |
| Design | E | |
| Contact type | pin | |
| Contact row assignment | a-c-e | |
| Rated current | 6 A | |
| Orientation | angled | |
| Pin number | 48 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
