09042326821 | Harting
Female connector, type D, 32 pole, a-c, pitch 5.08 mm, wire-wrap, straight, gold-plated, 09042326821
Unit Price (€ / pc.)
12.1142 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
12.11 € *
Price list
Quantity
Price per unit*
1 pcs.
12.1142 €
10 pcs.
10.6624 €
50 pcs.
9.9246 €
150 pcs.
9.4962 €
500 pcs.
9.0202 €
*incl. VAT plus shipping costs
**Subject to prior sale

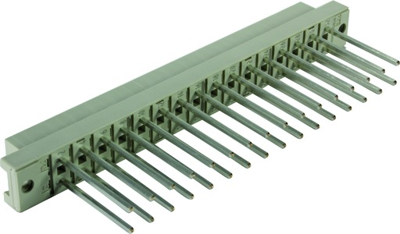

Female connector, 09042326821, Harting
Female connector, Wrap termination, Rated current: 6 A, Contacts: 32, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 2 | |
| Connection | wire-wrap | |
| Design | D | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Contact row assignment | a-c | |
| Rated current | 6 A | |
| Orientation | straight | |
| Pin number | 32 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
