09041326922 | Harting

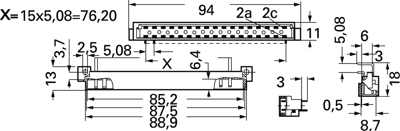

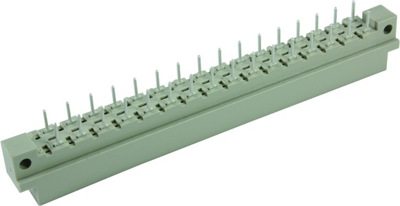

Male connector, type D, 32 pole, a-c, pitch 5.08 mm, solder pin, straight, gold-plated, 09041326922
Unit Price (€ / pc.)
8.5323 € *
Available: 44 pcs.
Leadtime: 1 Week **
Total Price:
8.53 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5323 €
10 pcs.
7.5089 €
100 pcs.
6.5807 €
250 pcs.
6.3308 €
1000 pcs.
5.9262 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 09041326922, Harting
Male connector, Wave soldering termination, Rated current: 6 A, Contacts: 32, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Hole coding, Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 2 | |
| Connection | solder pin | |
| Design | D | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Contact row assignment | a-c | |
| Rated current | 6 A | |
| Orientation | straight | |
| Pin number | 32 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
