09036962921 | Harting

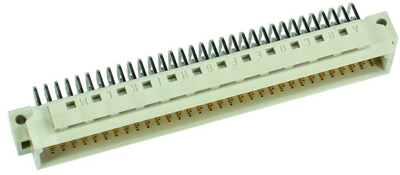

Male connector, type C, 96 pole, a-b-c, pitch 2.54 mm, solder pin, angled, 09036962921
Order No.: 44F584
EAN: 4099891016876
MPN:
09036962921
09 03 696 2921
Unit Price (€ / pc.)
6.3903 € *
Available: 18 pcs.
Leadtime: 3 Weeks **
Male connector, 09036962921, Harting
Male connector, Wave soldering termination, Rated current: 2 A, Contacts: 96, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Coding with loss of contacts, Side coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 1 | |
| Connection | solder pin | |
| Design | C | |
| Contact type | pin | |
| Contact row assignment | a-b-c | |
| Rated current | 2 A | |
| Orientation | angled | |
| Pin number | 96 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
