09670150413 | Harting

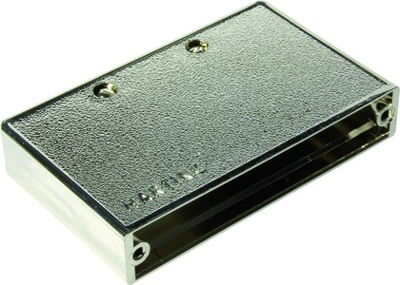

D-Sub connector housing, size: 2 (DA), straight 180°, cable Ø 5.75 to 9 mm, thermoplastic, shielded, silver, 09670150413
Order No.: 44F7000
EAN: 4099889811278
MPN:
09670150413
09 67 015 0413
Unit Price (€ / pc.)
6.7473 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
D-Sub connector housing, HARTING, 09670150413
D-Sub connector is an industry standard for cable-to-board connectivity applications. It can be universally used as a device interface, that is particularly suited to configure communication and data interfaces and is the standard for many fieldbus profiles.
Technical specifications
| Colour | silver | |
| Shell size | 2 (DA) | |
| Shell Material | thermoplastic, shielded | |
| Cable Outlet | straight 180° | |
| Cable diameter | 5.75 to 9 mm | |
| Type of locking | Lever or sliding lock |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
