09693009355 | Harting

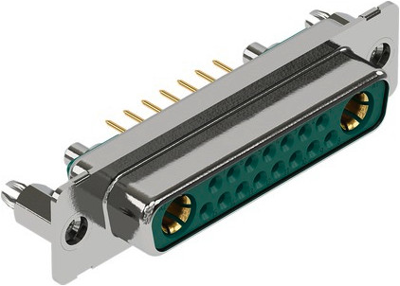

D-Sub socket, 17 pole, 17W2, straight, solder pin, 09693009355
Unit Price (€ / pc.)
27.6318 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
27.63 € *
Price list
Quantity
Price per unit*
1 pcs.
27.6318 €
10 pcs.
25.6921 €
25 pcs.
23.6334 €
50 pcs.
21.5152 €
*incl. VAT plus shipping costs
Subject to prior sale
D Sub connector, 09693009355, Harting
Connector, Wave soldering termination, Female, Size: D-Sub 3, Thermoplastic resin, glass-fibre filled (PBT), Shell: steel, tin plated, Green, Contacts: 17, Copper alloy, Gold plated Mating side, Sn over Ni Termination side.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | threaded insert 4-40 UNC | |
| Pole image | 17W2 | |
| Assembly | straight | |
| Grid | 2.84 mm | |
| Contact connection | solder pin | |
| Pin number | 17 pole | |
| Version | socket header | |
| Performance level | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
