D-Sub plug, 11 pole, 11W1, equipped, straight, solder cup, 09692117111
Order No.: 44F7780
EAN: 4099889802696
MPN:
09692117111
09 69 211 7111
Unit Price (€ / pc.)
5.9976 € *
Available: 0 pcs.
Leadtime: 18 Weeks **

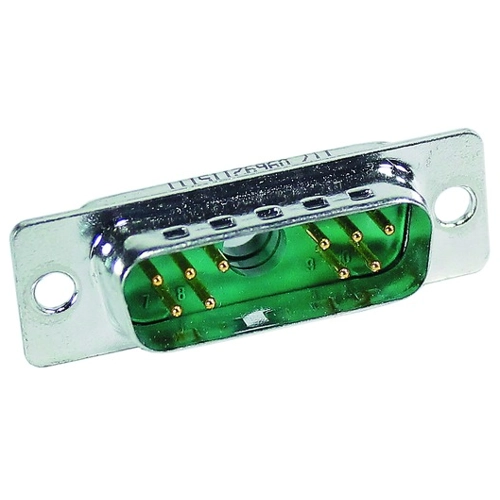

D-Sub plug, 09692117111, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Metal shell: Tin-plated steel
- Performance level: 3
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Performance level | 3 | |
| Version | pin header | |
| Attachment (rear panel) | through hole | |
| Additional parts | equipped | |
| Contact connection | solder cup | |
| Assembly | straight | |
| Pole image | 11W1 | |
| Pin number | 11 pole | |
| Type of locking | through hole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
