09652236803 | Harting

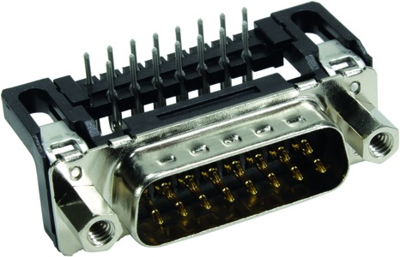

D-Sub plug, 15 pole, standard, equipped, angled, solder pin, 09652236803
Unit Price (€ / pc.)
3.7366 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
D-Sub plug, 09652236803, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Shell material: Plated-steel
- Contact material: Copper alloy
- Performance level: 2
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Performance level | 2 | |
| Version | pin header | |
| Attachment (rear panel) | through hole | |
| Additional parts | equipped | |
| Contact connection | solder pin | |
| Assembly | angled | |
| Pole image | standard | |
| Pin number | 15 pole | |
| Grid | 2.74 mm | |
| Type of locking | threaded bolts 4-40 UNC |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
