09551567615741 | Harting

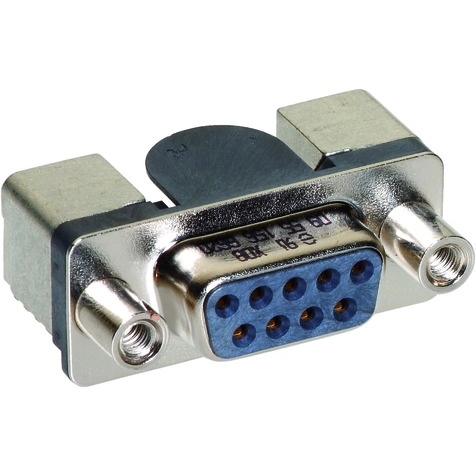

D-Sub socket, 9 pole, standard, equipped, angled, solder pin, 09551567615741

Order No.: 45F6188
EAN: 4099891199890
MPN:
09551567615741
09 55 156 7615 741
Series: D-Sub
09551567615741 Harting D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
5.3074 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
5.31 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3074 €
3 pcs.
5.1408 €
10 pcs.
4.9861 €
20 pcs.
4.8671 €
40 pcs.
4.7719 €
*incl. VAT plus shipping costs
Subject to prior sale

D-Sub socket, 09551567615741, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Shell material: Nickel-plated
  • Contact material: Phosphorus bronze
  • Performance level: 3

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Type of locking threaded insert M3
Pole image standard
Attachment (rear panel) through hole
Assembly angled
Grid 2.76 mm
Contact connection solder pin
Pin number 9 pole
Version socket header
Additional parts equipped
Performance level 3
Logistics
Country of origin CN
Customs tariff number 85366990
Original Packaging Reel with 160 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
