09551566620333 | Harting

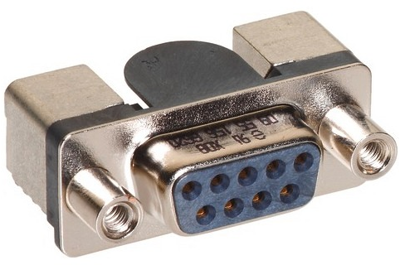

Name: D-Sub socket, 9 pole, standard, angled, solder pin, 09551566620333
Brand: Harting
SKU: 42P3831
Price: 9.37 EUR
Availability: OutOfStock

D-Sub socket, 9 pole, standard, angled, solder pin, 09551566620333

Order No.: 42P3831

EAN: 5713140220362

MPN:

09551566620333

09 55 156 6620 333

Series: D-Sub

Image may differ

Key Specification:

Pin number 9 pole

Version socket header

Contact connection solder pin

Grid 2.76 mm

Show 15 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.3653 € *

Available: 0 pcs.

Leadtime: 2 Weeks **

Add to Cart

Total Price:

9.37 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

D-Sub connector, 09551566620333, Harting

Connector, Reflow soldering termination (SMT), Rated current: 5 A, female, size: D-Sub 1, Liquid-crystal polymer (LCP), Shell: steel, nickel plated.

Technical specifications

	Performance level	2
	Version	socket header
	Contact connection	solder pin
	Assembly	angled
	Pole image	standard
	Pin number	9 pole
	Grid	2.76 mm
	Type of locking	threaded bolts 4-40 UNC

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	VN
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
