09551157612741 | Harting
D-Sub socket, 9 pole, standard, equipped, straight, solder pin, 09551157612741
Unit Price (€ / pck.)
343.8743 € *
Available: 0 pck.
Leadtime: 8 Weeks **

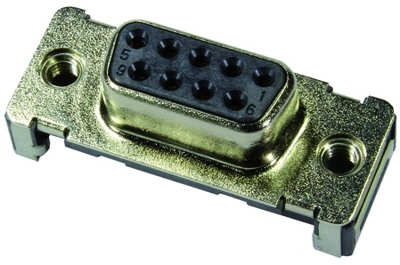

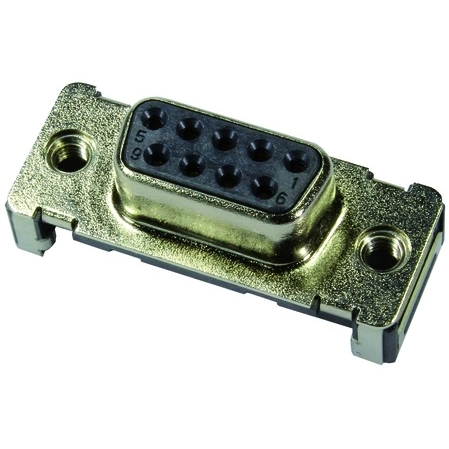

D-Sub socket, 09551157612741, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Shell material: Nickel-plated
- Contact material: Phosphorus bronze
- Performance level: 2
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Performance level | 3 | |
| Version | socket header | |
| Attachment (rear panel) | through hole | |
| Additional parts | equipped | |
| Contact connection | solder pin | |
| Assembly | straight | |
| Pole image | standard | |
| Pin number | 9 pole | |
| Grid | 2.74 mm | |
| Type of locking | threaded insert 4-40 UNC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
