09330242601 | Harting

Pin contact insert, 24B, 24 pole, equipped, screw connection, with PE contact, 09330242601

Order No.: 42F170
EAN: 4099889769593
MPN:
09330242601
09 33 024 2601
Series: Han E/ES

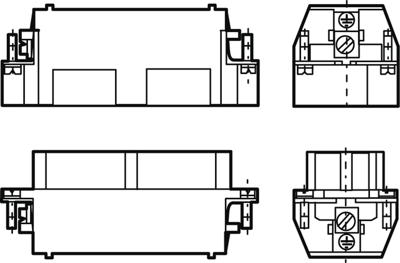

09330242601 Harting Contact Inserts Image 1

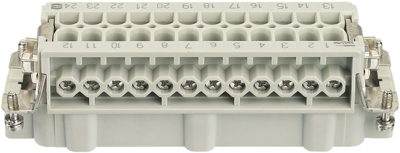

09330242601 Harting Contact Inserts Image 2

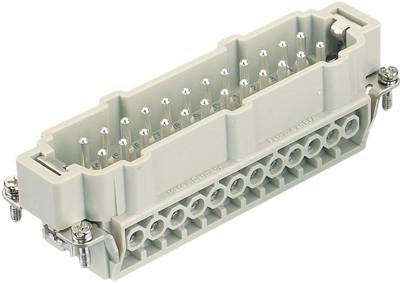

09330242601 Harting Contact Inserts Image 3

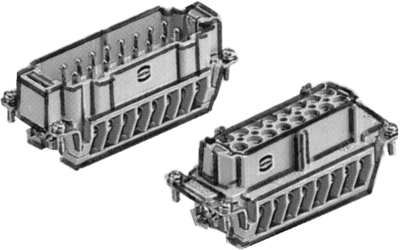

09330242601 Harting Contact Inserts Image 4
Image may differ
Unit Price (€ / pc.)
31.1899 € *
Available: 1 pcs.
Total Price:
31.19 € *
Price list
Quantity
Price per unit*
1 pcs.
31.1899 €
10 pcs.
27.4414 €
50 pcs.
25.5612 €
150 pcs.
24.4545 €
500 pcs.
23.2050 €
*incl. VAT plus shipping costs
Subject to prior sale

Contact insert, 09330242601, Harting

Insert, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.75 - 2.5 mm², Copper alloy, Silver plated

Technical specifications
Filter Property Value
Shell size 24B
Contact connection screw connection
Version pin insert
PE contact Yes
Pin number 24 pole
Additional parts equipped
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
