09330164739 | Harting

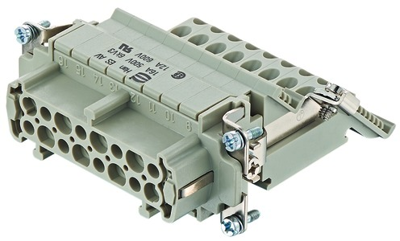

Socket contact insert, 16B, 16 pole, equipped, cage clamp terminal, with PE contact, 09330164739
Unit Price (€ / pc.)
44.4346 € *
Available: 0 pcs.
Leadtime: On Request **
Contact insert, 09 33 016 4739, Harting
Insert, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 16 B, Contacts: 16, Conductor cross-section: 0.14-2.5 mm², Copper alloy, Silver plated
Technical Data
- Contact design: Socket Insert
- Material: Thermoplastic
- Shell size: 16B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 16 A
- Rated voltage: 500 V
- PE contact: Yes
- Colour: gray
Technical specifications
| Version | socket insert | |
| Additional parts | equipped | |
| Shell size | 16B | |
| Contact connection | cage clamp terminal | |
| PE contact | Yes | |
| Pin number | 16 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
