09330162716 | Harting

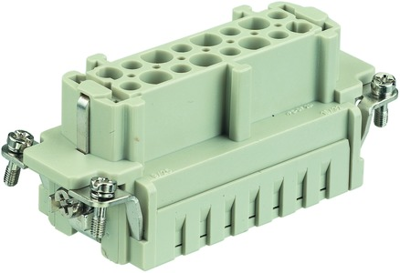

Socket contact insert, 16B, 16 pole, equipped, cage clamp terminal, with PE contact, 09330162716

Order No.: 44F3120
EAN: 4099889774672
MPN:
09330162716
09 33 016 2716
Series: Han ES
Harting
09330162716 Harting Contact Inserts
Image may differ
Print
Key Specification:
Version socket insert
Shell size 16B
Additional parts equipped
Contact connection cage clamp terminal
Pin number 16 pole
Show variants: 20
Download Datasheet Technical specifications
Unit Price (€ / pc.)
15.2796 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
15.28 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
15.2796 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Contact insert, 09 33 016 2716, Harting

Insert, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 16 B, Contacts: 16, Conductor cross-section: 0.14-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 16B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Additional parts equipped
Pin number 16 pole
PE contact Yes
Contact connection cage clamp terminal
Shell size 16B
Version socket insert
Articles of same specification 0
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Substance description Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
Date of RoHS guidelines 3/31/15
