09330064635 | Harting

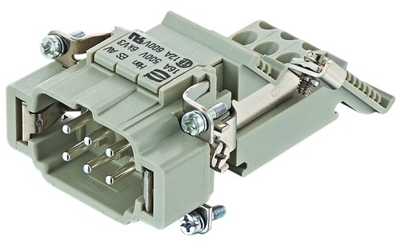

Pin contact insert, 6B, 6 pole, equipped, screw connection, with PE contact, 09330064635
Order No.: 44F3069
EAN: 4099889774290
MPN:
09330064635
09 33 006 4635
Unit Price (€ / pc.)
44.0062 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Contact insert, 09 33 006 4635, Harting
Insert, Terminal block connector, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 6 B, Contacts: 6, Conductor cross-section: 0.2-2.5 mm², Copper alloy, Silver plated
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: 6B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 16 A
- Rated voltage: 500 V
- PE contact: Yes
- Colour: gray
Technical specifications
| Version | pin insert | |
| Additional parts | equipped | |
| Shell size | 6B | |
| Contact connection | screw connection | |
| PE contact | Yes | |
| Pin number | 6 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
