09140083032 | Harting
Pin contact insert, 8 pole, unequipped, crimp connection, 09140083032
Order No.: 44F0628
EAN: 4099889772708
MPN:
09140083032
09 14 008 3032
Unit Price (€ / pc.)
48.2545 € *
Available: 0 pcs.
Leadtime: 16 Weeks **

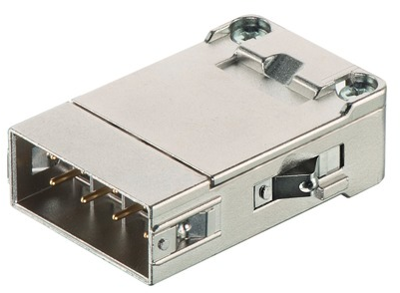

Contact insert, 09 14 008 3032, Harting
Crimp termination, Male, Contacts: 8, + shielding, Conductor cross-section: 0.09-0.52 mm², Rated current: 5 A, Polycarbonate (PC), RAL 7032 (pebble grey)
Technical Data
- Contact design: Pin Insert
- min. Operating temperature: -40 °C
- max. Operating temperature: 85 °C
- Rated current: 5 A
- Rated voltage: 50 V
- PE contact: No
- Colour: gray
Technical specifications
| Version | pin insert | |
| Additional parts | unequipped | |
| Contact connection | crimp connection | |
| PE contact | No | |
| Pin number | 8 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
