09140083017 | Harting

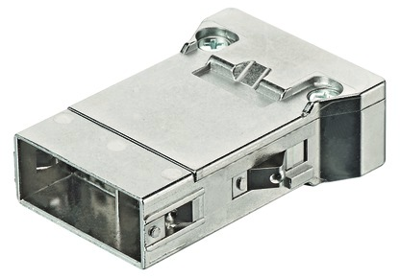

Pin contact insert, 8 pole, unequipped, crimp connection, 09140083017

Order No.: 44F0624
EAN: 4099889772661
MPN:
09140083017
09 14 008 3017
Series: Han Modular
09140083017 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
51.0153 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
51.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
51.0153 €

Contact insert, 09 14 008 3017, Harting

Crimp termination, Male, Contacts: 8, + shielding, Conductor cross-section: 0.14-2.5 mm², Rated current: 10 A, Polycarbonate (PC), RAL 7032 (pebble grey)

Technical Data

  • Contact design: Pin Insert
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 85 °C
  • Rated current: 10 A
  • Rated voltage: 50 V
  • PE contact: No
  • Colour: gray
Technical specifications
Filter Property Value
Pin number 8 pole
Version pin insert
Additional parts unequipped
Contact connection crimp connection
PE contact No
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
