09140052741 | Harting

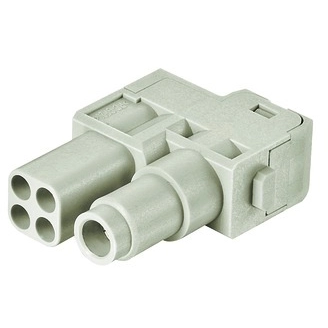

Socket contact insert, 5 pole, equipped, axial screw connection, 09140052741
Unit Price (€ / pc.)
13.4470 € *
Available: 0 pcs.
Leadtime: On Request **
Contact insert, 09 14 005 2741, Harting
Han 70 A Hybrid module, Axial screw termination / crimp termination, Female, Contacts: 1, + 4 additional signal contacts, Conductor cross-section: 6-16 mm², Rated current: 70 A, Polycarbonate (PC), RAL 7032 (pebble grey)
Technical Data
- Contact design: Socket Insert
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 70 A
- Rated voltage: 1000 V
- PE contact: No
- Colour: gray
Technical specifications
| Version | socket insert | |
| Additional parts | equipped | |
| Contact connection | axial screw connection | |
| PE contact | No | |
| Pin number | 5 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
