09140043041 | Harting

Pin contact insert, 4 pole, unequipped, crimp connection, 09140043041

Order No.: 44F0572
EAN: 4099889772326
MPN:
09140043041
09 14 004 3041
Series: Han Modular
09140043041 Harting Contact Inserts

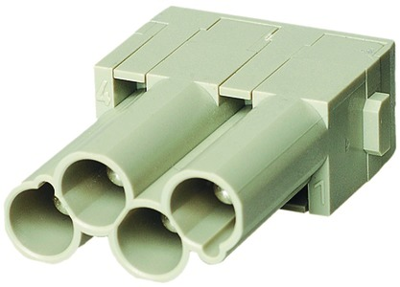

Image may differ
Unit Price (€ / pc.)
5.8667 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.87 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.8667 €

Contact insert, 09 14 004 3041, Harting

Han CC Protected module, Crimp termination, Male, Contacts: 4, Conductor cross-section: 1.5-6 mm², Rated current: 40 A, Polycarbonate (PC), RAL 7032 (pebble grey)

Technical Data

  • Contact design: Pin Insert
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 40 A
  • Rated voltage: 830 V
  • PE contact: No
Technical specifications
Filter Property Value
Pin number 4 pole
Version pin insert
Additional parts unequipped
Contact connection crimp connection
PE contact No
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
