09140022650 | Harting
Pin contact insert, 2 pole, equipped, axial screw connection, 09140022650
Order No.: 44F0532
EAN: 4099889771954
MPN:
09140022650
09 14 002 2650
Unit Price (€ / pc.)
60.095 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

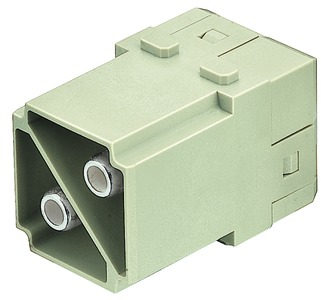

Contact insert, 09 14 002 2650, Harting
Han 100 A module, Axial screw termination, Male, Contacts: 2, Conductor cross-section: 38 mm², Rated current: 100 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Silver plated
Technical Data
- Contact design: Pin Insert
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 100 A
- Rated voltage: 1000 V
- PE contact: No
Technical specifications
| Version | pin insert | |
| Additional parts | equipped | |
| Contact connection | axial screw connection | |
| PE contact | No | |
| Pin number | 2 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
