09120123104 | Harting
Socket contact insert, 3A, 12 pole, unequipped, crimp connection, with PE contact, 09120123104
Order No.: 44F0355
EAN: 4099889771527
MPN:
09120123104
09 12 012 3104
Unit Price (€ / pc.)
12.9948 € *
Available: 21 pcs.
Next delivery: 10 pcs. on 2024-05-17
Leadtime: 8 Weeks **
Total Price:
12.99 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9948 €
10 pcs.
11.4359 €
50 pcs.
10.6505 €
150 pcs.
10.1745 €
*incl. VAT plus shipping costs
**Subject to prior sale

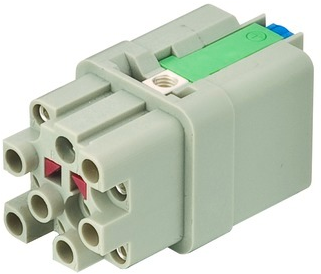

Contact insert, 09 12 012 3104, Harting
Insert, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 3 A, Contacts: 12, Conductor cross-section: 0.14-2.5 mm²
Technical Data
- Contact design: Socket Insert
- Material: Thermoplastic
- Shell size: 3A
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 10 A
- Rated voltage: 400 V
- PE contact: Yes
Technical specifications
| Version | socket insert | |
| Additional parts | unequipped | |
| Shell size | 3A | |
| Contact connection | crimp connection | |
| PE contact | Yes | |
| Pin number | 12 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
