09120082733 | Harting

Socket contact insert, Compact, 8 pole, equipped, spring connection, with PE contact, 09120082733

Order No.: 44F0312
EAN: 4099889771312
MPN:
09120082733
09 12 008 2733
Series: Han Q

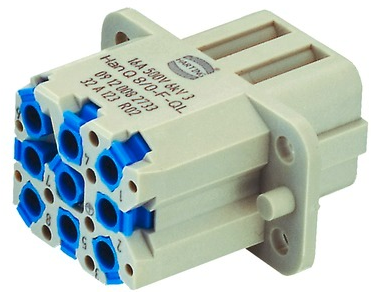

09120082733 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
23.1098 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
23.11 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.1098 €

Contact insert, 09 12 008 2733, Harting

Insert, Han-Quick Lock termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: Han-Compact, Contacts: 8, Conductor cross-section: 0.5-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
Technical specifications
Filter Property Value
Pin number 8 pole
Version socket insert
Additional parts equipped
Shell size Compact
Contact connection spring connection
PE contact Yes
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
