09120073101 | Harting

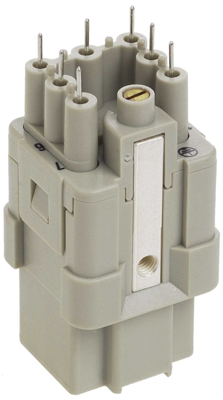

Socket contact insert, 3A, 7 pole, unequipped, crimp connection, with PE contact, 09120073101
Unit Price (€ / pc.)
13.7326 € *
Available: 35 pcs.
Total Price:
13.73 € *
Price list
Quantity
Price per unit*
1 pcs.
13.7326 €
10 pcs.
12.0785 €
50 pcs.
11.2574 €
150 pcs.
10.7695 €
500 pcs.
10.2102 €
*incl. VAT plus shipping costs
Subject to prior sale
Contact inserts, bare, Type Han Q 0912.
7-pole + PE, For mounting of power contacts for series Han D, For housing size 3 A. Rated voltage / current / surge voltage 400 V/10 A/6.0 kV; Degree of soiling: 3. Material: polycarbonate. Combustibility to UL 94V-0. Insertion cycles: at least 500. Coding: 6 positions via coding pin. Corresponding crimp contacts are described at the end of the series and available on separate order.
Type: 0073101, 7–pole, female
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | unequipped | |
| Pin number | 7 pole | |
| PE contact | Yes | |
| Contact connection | crimp connection | |
| Shell size | 3A | |
| Version | socket insert |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
