09120062766 | Harting

Socket contact insert, Compact, 6 pole, equipped, axial screw connection, with PE contact, 09120062766

Order No.: 44F0286
EAN: 4099889771206
MPN:
09120062766
09 12 006 2766
Series: Han Q
09120062766 Harting Contact Inserts

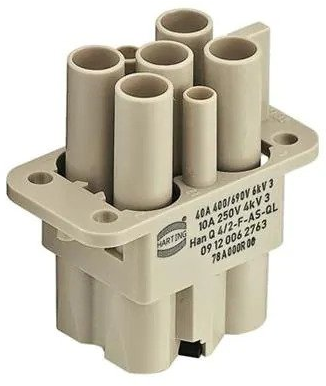

Image may differ
Unit Price (€ / pc.)
36.057 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
36.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
36.057 €

Contact insert, 09 12 006 2766, Harting

Insert, Axial screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: Han-Compact, Contacts: 4, + 2 additional signal contacts, Conductor cross-section: 4-10 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 40 A
  • PE contact: Yes
Technical specifications
Filter Property Value
Version socket insert
Pin number 6 pole
Additional parts equipped
Contact connection axial screw connection
PE contact Yes
Shell size Compact
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
