09120062765 | Harting

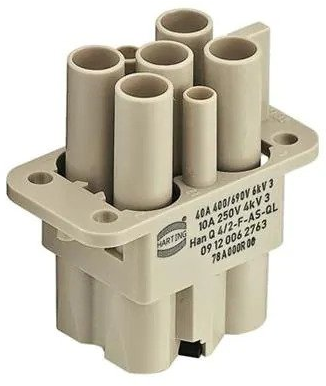

Socket contact insert, Compact, 6 pole, equipped, axial screw connection, with PE contact, 09120062765
Unit Price (€ / pc.)
31.3446 € *
Available: 9 pcs.
Contact insert, 09 12 006 2765, Harting
Insert, Axial screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: Han-Compact, Contacts: 4, + 2 additional signal contacts, Conductor cross-section: 2.5-6 mm², Copper alloy, Silver plated
Technical Data
- Contact design: Socket Insert
- Material: Thermoplastic
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 40 A
- PE contact: Yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | axial screw connection | |
| PE contact | Yes | |
| Pin number | 6 pole | |
| Additional parts | equipped | |
| Shell size | Compact | |
| Version | socket contact insert |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
