09120062762 | Harting

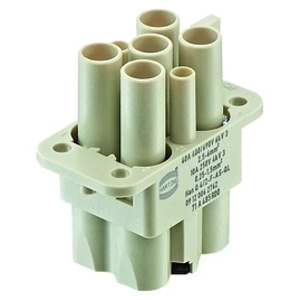

Socket contact insert, Compact, 6 pole, equipped, axial screw connection, with PE contact, 09120062762

Order No.: 44F0283
EAN: 4099889771176
MPN:
09120062762
09 12 006 2762
Series: Han Q
09120062762 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
42.9233 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
42.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
42.9233 €

Contact insert, 09 12 006 2762, Harting

Insert, Axial screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: Han-Compact, Contacts: 4, + 2 additional signal contacts, Conductor cross-section: 2.5-6 mm², 0.25-1.5 mm² Signal, Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 40 A
  • PE contact: Yes
Technical specifications
Filter Property Value
Pin number 6 pole
Version socket insert
Additional parts equipped
Shell size Compact
Contact connection axial screw connection
PE contact Yes
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
