09120053101 | Harting

Socket contact insert, 3A, 5 pole, unequipped, crimp connection, with PE contact, 09120053101

Order No.: 42F8552
EAN: 4099889770117
MPN:
09120053101
09 12 005 3101
Series: Han Q

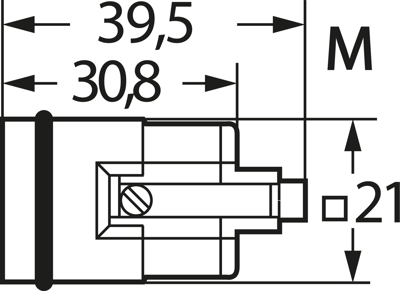

09120053101 Harting Contact Inserts Image 1

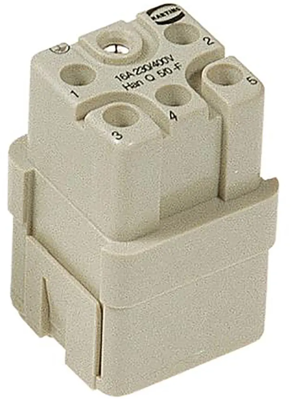

09120053101 Harting Contact Inserts Image 2
Image may differ
Unit Price (€ / pc.)
10.9599 € *
Available: 10 pcs.
Total Price:
10.96 € *
Price list
Quantity
Price per unit*
1 pcs.
10.9599 €
10 pcs.
9.6509 €
50 pcs.
8.9845 €
150 pcs.
8.5918 €
*incl. VAT plus shipping costs
Subject to prior sale

Contact inserts, bare, Type Han Q 0912.

5-pole + PE. With control/power contacts. For housing size 3 A; Rated current: 16 A. Rated voltage: 230/400 V. Test voltage: 2.0 kV. Degree of soiling: 3. Material: polycarbonate. Combustibility compliant with UL V-0. Insertion cycles: min. 500. Coding is possible by inserting a contact with coding pin in place of the female contact. This male contact may not be connected. Corresponding crimp contacts are described at the end of the series. Please order separately.

Type: 0053101, 5–pole, female

Technical specifications
Filter Property Value
Version socket insert
Pin number 5 pole
Additional parts unequipped
Contact connection crimp connection
PE contact Yes
Shell size 3A
Logistics
Property Value
Customs tariff number 85389099
Country of origin RO
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
