09120052733 | Harting

Socket contact insert, 3A, 5 pole, equipped, spring connection, with PE contact, 09120052733

Order No.: 44F0270
EAN: 4099889771053
MPN:
09120052733
09 12 005 2733
Series: Han Q

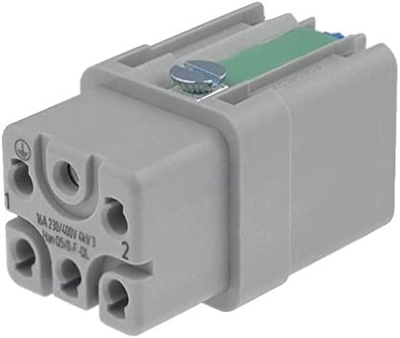

09120052733 Harting Contact Inserts Image 1

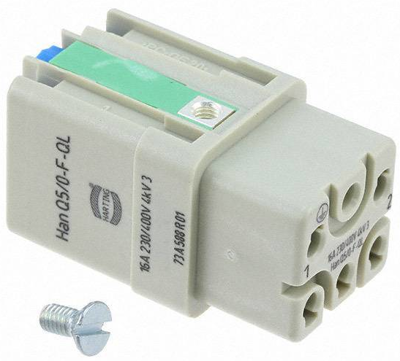

09120052733 Harting Contact Inserts Image 2
Image may differ
Unit Price (€ / pc.)
21.3486 € *
Available: 12 pcs.
Total Price:
21.35 € *
Price list
Quantity
Price per unit*
1 pcs.
21.3486 €
10 pcs.
18.7901 €
50 pcs.
17.5049 €
150 pcs.
16.7314 €
500 pcs.
15.8865 €
*incl. VAT plus shipping costs
Subject to prior sale

Contact insert, 09 12 005 2733, Harting

Insert, Han-Quick Lock termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 3 A, Contacts: 5, Conductor cross-section: 0.5-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 3A
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • PE contact: Yes
Technical specifications
Filter Property Value
Pin number 5 pole
Version socket insert
Additional parts equipped
Shell size 3A
Contact connection spring connection
PE contact Yes
Logistics
Property Value
Customs tariff number 85366990
Country of origin RO
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
