09930010502 | Harting
Grommet housing, angled, longitudinal bracket, signal red, 1500 V, 200 A, 25-50 mm², 09930010502
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
11.6858 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
11.69 € *
Price list
Quantity
Price per unit*
1 pcs.
11.6858 €
10 pcs.
10.4720 €
50 pcs.
9.7937 €
100 pcs.
9.1987 €
*incl. VAT plus shipping costs
Subject to prior sale

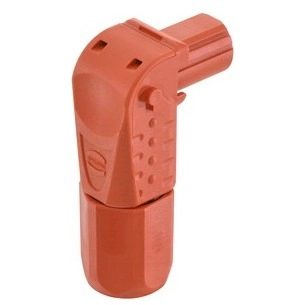

Grommet housing, 09930010502, Harting
Grommet housing with single locking lever, angled, Polyamide (PA).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | grommet housing | |
| Version | angled, longitudinal bracket | |
| Rated Voltage | 1500 V | |
| Rated current | 200 A | |
| Cable cross-section | 25-50 mm² | |
| Pin number | 1 pole | |
| Colour | signal red | |
| Degree of protection (IP) | IP20/IP40 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
