1591LFLGY | Hammond

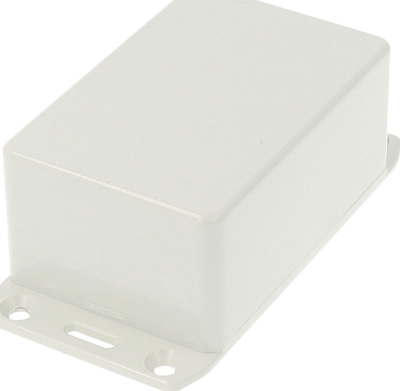

ABS enclosure, (L x W x H) 84 x 56 x 36 mm, light gray (RAL 7035), IP54, 1591LFLGY
Unit Price (€ / pc.)
3.2368 € *
Available: 3 pcs.
Available in 7 Days: 396 pcs.
Leadtime: 1 Week **
Multipurpose Enclosure, 1591LFLGY, Hammond
Features
- Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right).
- Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54
- Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
- Black enclosures include black screws, while all others include standard nickel finish screws
Technical specifications
| Width | 56 mm | |
| Colour | light gray | |
| Height | 36 mm | |
| Length | 84 mm | |
| Material | ABS | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Country of origin | CA |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
