1591FTGY | Hammond

Flange plate, ABS, (L x W x H) 146.99 x 76.63 x 3 mm, gray, for series 1591T, 1591FTGY

Order No.: 61H2982
EAN: 4099889569742
MPN:
1591FTGY
Series: 1591
1591FTGY Hammond Accessories for Enclosures

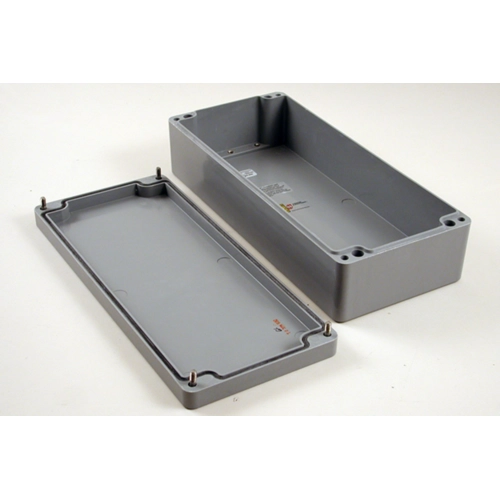

Image may differ
Unit Price (€ / pc.)
3.7485 € *
Available in 7 Days: 3 pcs. - if ordered today
Total Price:
7.50 € *
Price list
Quantity
Price per unit*
2 pcs.
3.7485 €
10 pcs.
3.5700 €
50 pcs.
3.2011 €
100 pcs.
2.8798 €
*incl. VAT plus shipping costs
Subject to prior sale

Flange, 1591FTGY, Hammond

Features

  • Designed to allow for easy mounting of 1591 series or 1591XX series enclosures to a wal or shelf.
  • Includes one flange, molded from fire retardant ABS plastic (material carries a UL flammability rating of 94V-0). Satin texture finish.
  • Easily glued to enclosure using standard ABS cement (not included).
  • Flange ends are raised on one side to allow easy positioning of enclosure during gluing process.
  • Four molded counter sunk holes allow for easy installation to wall or shelf.
  • Oval hole in each side of flange allows the unit to be strapped or hung via tie wraps.
Technical specifications
Suitable for series 1591T
Length 146.99 mm
Product type flange plate
Colour gray
Material ABS
Width 76.63 mm
Height 3 mm
Logistics
Country of origin US
Customs tariff number 39269097
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
