GPE-6030 | GW Instek

Laboratory power supply, 0 bis 60 V, outputs: 3 (3 A), 0 to 3 A, 385 W, GPE-6030

Order No.: 24K7814
EAN: 4711458120795
MPN:
GPE-6030
01GP603010GS
Series: GPE

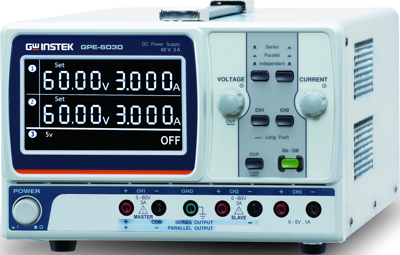

GPE-6030 GW Instek Bench Power Supplies and Loads Image 1

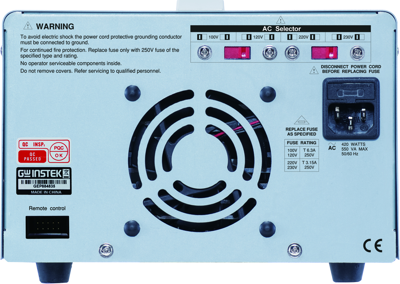

GPE-6030 GW Instek Bench Power Supplies and Loads Image 2
Image may differ
Unit Price (€ / pc.)
756.84 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
756.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
756.84 €

Triple-Channel DC Power Supply, GPE-6030, GW Instek

The GPE-6030 is a high-resolution linear DC power supply. Its primary aim is to replace the existing GPE-6030D model. The GPE-6030 delivers 385 watt of output power and features one independent isolated output channel. The GPE-6030 supports CH1/CH2 output of 0 to 60V and 0 to 3A. Each model features CH3 output of 5.0V at 5A.

Features

  • Series/parallel tracking function
  • Output On/Off function
  • Simple analog control interface
  • Multiple protection apparatuses such as overvoltage and overload protection functions

Applications

  • Scientific Research and Experimental Testing
  • Electronic Parts Test
  • 3C Electronic Product Test
Technical specifications
Filter Property Value
Power 385 W
Range of Output Currence 0 to 3 A
Output voltage DC 0 to 60 V
Height 155 mm
Width 210 mm
Depth 362 mm
Output current 3 A
Number of outputs 3
Logistics
Property Value
Country of origin CN
Customs tariff number 85044085
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
