GPE-4323 | GW Instek

Laboratory power supply, 0 bis 32 V, outputs: 4 (3 A), 0 to 3 A, 212 W, GPE-4323

Order No.: 24K7808
EAN: 4719692509291
MPN:
GPE-4323
01GP432310GS
Series: GPE
GPE-4323 GW Instek Bench Power Supplies and Loads
Image may differ
Unit Price (€ / pc.)
464.10 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
464.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
464.10 €

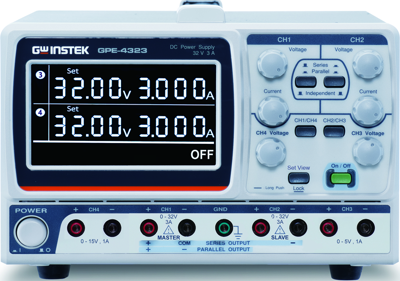

Multiple Output Linear DC Power Supply, GPE-4323, GW Instek

The GPE-4323 is a cutting-edge, economical linear DC power supply. It delivers an output power range from 192 to 217 watts and features three independent isolated output channels, along with high resolution, low noise, high reliability, and a compact design. This model incorporates a built-in digital panel control system that replaces conventional control methods. This modern design provides users with enhanced functionality, including a set view and key lock, streamlining the operation process. The key lock function safeguards the DUT by preventing unauthorized changes to voltage and current parameters. Additionally, the illuminated output key helps users easily monitor the operational status of the power supply.

Features

  • Output ON/OFF
  • Analog Control (Remote I/O) for Output ON / OFF
  • Key Lock Function
Technical specifications
Filter Property Value
Power 212 W
Range of Output Currence 0 to 3 A
Output voltage DC 0 to 32 V
Height 155 mm
Width 210 mm
Depth 306 mm
Output current 3 A
Number of outputs 4
Logistics
Property Value
Country of origin CN
Customs tariff number 85044085
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
